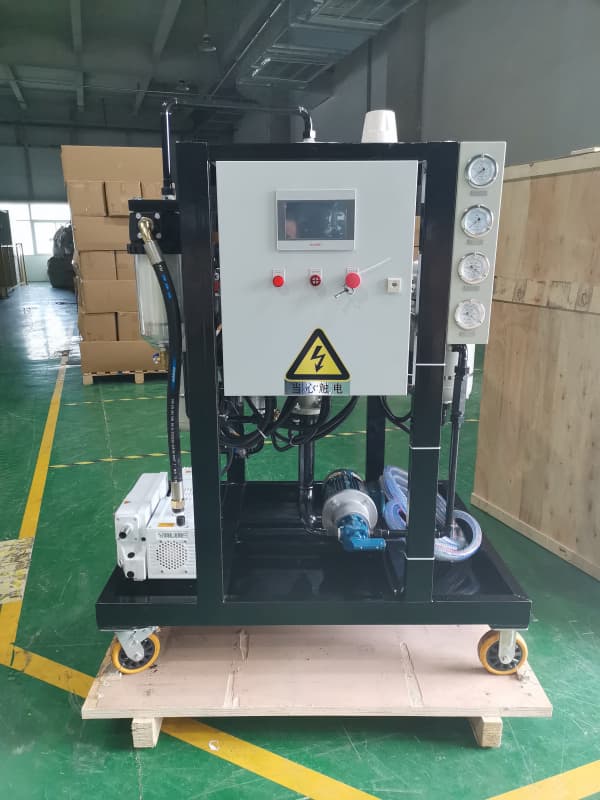

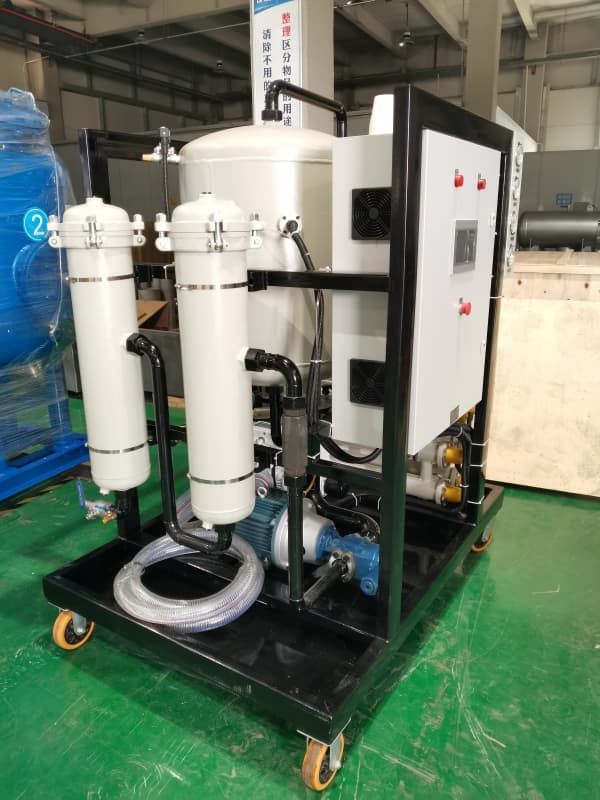

Vacuum Oil Purifier with Complete Accessories

The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification.

Technical Specifications

Efficient Vacuum Dehydration and Degassing

The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment.

Three-Stage Precision Filtration

The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination.

Powerful Heating and High Processing Capacity

Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications.

PLC Automatic Control

The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification.

Key Advantages and Features

• High Flow Capacity: Processes up to 50 liters of oil per minute for efficient industrial applications.
• Deep Vacuum Purification: A vacuum level of ≤ -0.095 MPa supports effective moisture and air removal.
• Low Residual Moisture: Achieves a residual water content of approximately 5–10 ppm after purification.
• Effective Degassing: Residual air content can be controlled to ≤ 0.2%.
• Three-Stage Filtration: Progressive filtration of 100 μm, 10–20 μm, and 1–3 μm provides multi-level contaminant control.
• Powerful Heating: 24 kW heating power supports efficient water separation during vacuum treatment.
• Strong Motor Performance: A 36 kW motor provides reliable power for demanding purification operations.
• PLC Control: Automated control simplifies operation and helps maintain consistent purification conditions.
• Complete Accessories: Supplied with all required accessories for convenient system installation and operation.

Industrial Applications

This vacuum oil purification system is suitable for oil maintenance and contamination control in hydraulic equipment, industrial machinery, lubrication systems, power equipment, oil maintenance workshops, manufacturing plants, and equipment service centers. It can be used where moisture, air, and solid particles need to be removed to maintain cleaner oil and support reliable equipment operation.
